CRYSTAL PRODUCTS

Protect your fluid from moisture and particles!

Every system or storage tank that contains a fluid, like a lubricant, is in danger of having it's contents contaminated with moisture and particles coming from its environment. Not only that, the equipment itself, in turn, is in danger of corrosion on the inside due to this. Protect your lubricants and equipment by installing a Crystal Products breather. Easy to install, easy to replace, maximum protection.

  • CPD008

    CPD008

    For use where space is limited.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • Ideal when space is limited
    • Easy installation
    • Made in Europe

    Technical information:

    • ~80ml water adsorption
    • 3 micron particle filter
    • Size: ⌀77 x 85mm
    • 1/2" thread (in) connection
    • Does not require mounting adapter

    > ORDER NOW

  • CPD032

    CPD032

    Our standard size breather.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • High adsorption capacity
    • Easy installation
    • Made in Europe

    Technical information:

    • ~320ml water adsorption
    • 3 micron particle filter
    • Size: ⌀132 x 160mm
    • Slip-fit connection
    • Requires mounting adapter
    • Available as "long life" version (CPD032V)

    > ORDER NOW

  • CPD064

    CPD064

    Our maximum size breather.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • Maximum adsorption capacity
    • Easy installation
    • Made in Europe

    Technical information:

    • ~640ml water adsorption
    • 3 micron particle filter
    • Size: ⌀132 x 305mm
    • Slip-fit connection
    • Requires mounting adapter
    • Available as "long life" version (CPD064V)

    > ORDER NOW

  • CPD032V

    CPD032V

    Long life standard size breather.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • High adsorption capacity
    • Easy installation
    • Made in Europe
    • Equipped with one-directional valves

    Technical information:

    • ~320ml water adsorption
    • 3 micron particle filter
    • Size: ⌀132 x 160mm
    • Slip-fit connection
    • Requires mounting adapter (V type)

    > ORDER NOW

  • CPD064V

    CPD064V

    Long life maximum size breather.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • Maximum adsorption capacity
    • Easy installation
    • Made in Europe
    • Equipped with one-directional valves

    Technical information:

    • ~640ml water adsorption
    • 3 micron particle filter
    • Size: ⌀132 x 305mm
    • Slip-fit connection
    • Requires mounting adapter (V type)

    > ORDER NOW

  • CPR048

    CPR048

    The refillable, heavy duty breather.

    Characteristics:

    • Non-toxic desiccant (silica gel)
    • High adsorption capacity
    • Easy installation
    • Made in Europe
    • Equipped with one-directional valves
    • Refillable using refillkit

    Technical information:

    • ~320ml water adsorption
    • 3 micron particle filter
    • Size: ⌀132 x 160mm
    • Slip-fit connection
    • Requires mounting adapter (V type)

    > ORDER NOW

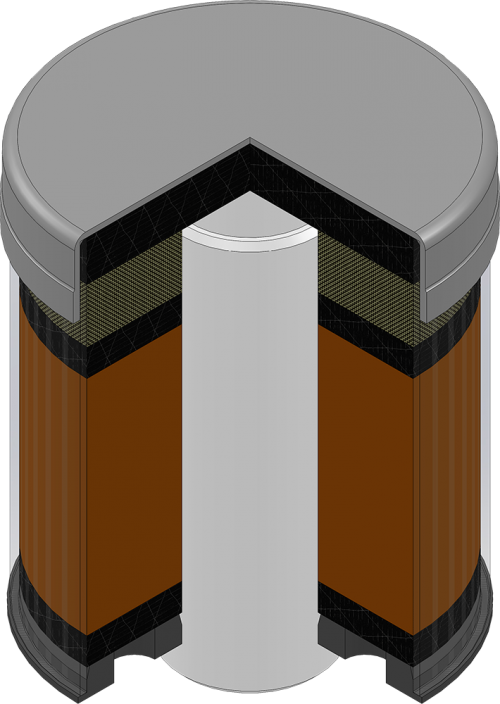

    How it works:

    DESICCANT (SILICA GEL)

    Orange to green, non-toxic indication. Adsorbs all moisture coming from the environment. Your breather is active when orange and when saturated, changes color to green. When green, it needs to be replaced.

    INNER TUBE / OUTLET

    The inner tube is connected through one of our mounting adapters to the application. Ensuring only dry and clean air can enter. The inner tube acts as clean air "OUT".

    ROBUST DESIGN

    Our breathers are designed to withstand most circumstances with a full synthetic, robust body.

    FILTER LAYER

    3 micron filter layer, making sure dust and particles from outside do not reach your fluid.

    INLET

    The contaminated air from the environment is coming in through holes in the bottom of the breather.
    • DESICCANT (SILICA GEL)

      Orange to green, non-toxic indication. Adsorbs all moisture coming from the environment. Your breather is active when orange and when saturated, changes color to green. When green, it needs to be replaced.
    • INNER TUBE / OUTLET

      The inner tube is connected through one of our mounting adapters to the application. Ensuring only dry and clean air can enter. The inner tube acts as clean air "OUT".
    • ROBUST DESIGN

      Our breathers are designed to withstand most circumstances with a full synthetic, robust body.
    • FILTER LAYER

      3 micron filter layer, making sure dust and particles from outside do not reach your fluid.
    • INLET

      The contaminated air from the environment is coming in through holes in the bottom of the breather.

      Refillable, heavy duty breather: CPR048

      Built to last!

      Looking for something refillable and heavy duty? Look no further than our CPR048 breather. With its extremely robust body consisting of aluminium and acrylic parts, the CPR048 breather can be taken apart completely, cleaned and refilled when saturated. The breather is also equipped with one-directional valves ensuring the longest possible life. This breather requires one of our mounting adapters (including valve) for easy application.

      ALUMINIUM

      parts

      HEAVY DUTY

      applications

      100%

      refillable

      Installation adapters

      Quick, easy installation on almost any application!


      • Standard adapters

        Standard adapter for use with CPD032 and CPD064 breathers (non- V- type). Available in many thread sizes:

        TR-650021

        CP Adapter 3/4” BSPT Male

        TR-650022

        CP Adapter 1” BSPT Male

        TR-650023

        CP Adapter 1 1/4” BSPT Male

        TR-650024

        CP Adapter 1 1/2” BSPT Male

        TR-650025

        CP Adapter 2” BSPT Male

        TR-650065

        CP Adapter 1” BSP Female

        get in touch

      • V- type adapters

        Adapter for use with CPD032 CPD064 V-type and CPR048 breathers. This adapter is fitted with air out valve ensuring no air can return through the breather. Only for use with V- type breathers.

        TR-650021.1

        CP Adapter 3/4” BSPT Male

        TR-650022.1

        CP Adapter 1” BSPT Male

        TR-650023.1

        CP Adapter 1 1/4” BSPT Male

        TR-650024.1

        CP Adapter 1 1/2” BSPT Male

        TR-650025.1

        CP Adapter 2” BSPT Male

        TR-650067

        CP Adapter 1” BSP Female

        Get in touch

      • 6-hole cap replacer

        Replacement adapter for the existing 6 hope tank cap. Simply remove the tank cap and place the adapter. The breather fits on top of this adapter. Only for use with CPD032 and CPD064 non V-type breathers.

        TR-650045

        CP Adapter cap replacer

        Get in touch

      Clear indication

      For our breathers, we use a clear indicator (silica gel). The color of the silica gel changes from  orange (active) to green (saturated) giving it's user a clear and visible indication.

      Engineered for it's user

      We've chosen to make it as user friendly as possible. Using a non-toxic desiccant and multiple plug and play adapters makes them fit almost any application. Using our slip-fit design, replacing a Crystal Products breather doesn't take more than a minute.

      QUICK MOUNT ADAPTERS

      We've got multiple mounting adapters available ranging from 1/2" to 2" connection or replacements for the standard 6 hole cap. Mounting a breather was never as easy as this! Our breathers are typically installed on hydraulic equipment, gearboxes, storage tanks and much much more. Where clean air is required, Crystal Products protects!

      HIGH PERFORMANCE, LOW COST

      Crystal Products offers high performance breathers at a low cost. Produced at TRIS B.V. in the Netherlands, we can ensure quick delivery at a very competitive price. Our breathers can replace many competitor types as well. World wide shipping available.
